VisionMiner 22 IDEX

22 IDEX #0

Properties

Build Volume 350 x 350 x 450 mm
Layer Resolution X 10 microns
Layer Resolution Y 10 microns
Layer Resolution Z 7 microns
Layer Resolution Low 500 microns
Layer Resolution High 50 microns
Nozzle Diameter 0.4
Filament Diameter 1.75
Print Speed Max. 500 mm/s
BrandVisionMiner
Machine type 3D Printer
Technology FDM (Fused Deposition Modeling)
Materials PLA, ABS, Wood PLA, PC, ASA, Rubber (TPU), PETG, PP (polypropylene)
Websitehttps://visionminer.com/products/22idex
Average Price US$9,700.00

About 22 IDEX

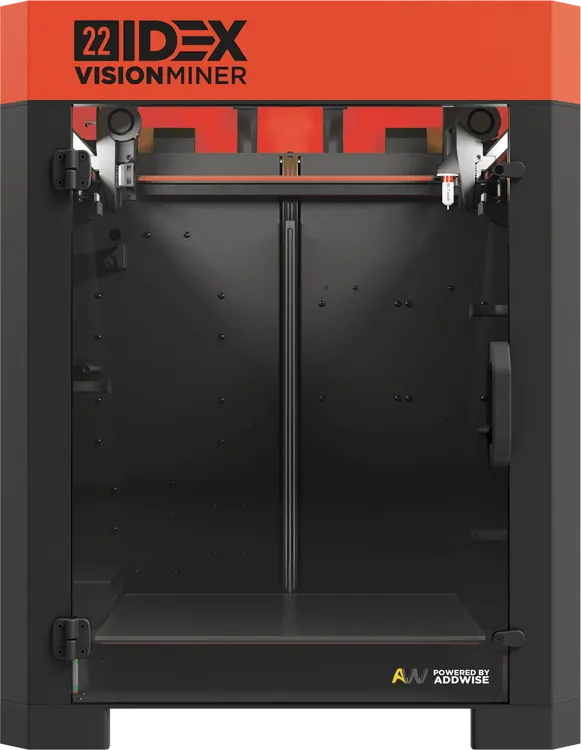

22 IDEX is an FDM 3D printer from VisionMiner. The machine has a medium-sized build volume of 350 x 350 x 450 mm and an outstanding bright design details. But, probably, the main outstanding qualities of this machine are that it has 2 independent extruders with the maximum temperature of 500 °C. To top it off, the printer has a temperature control chamber that can heat up to 90 degrees to keep the stable printing of engineering plastics. Such a printer falls on a more expensive price spectrum but allows more material options, especially for professional additive manufacturing.

Features:

  • 2 independent extruders;
  • Max. extruder temperature of 500 °C;
  • Heated chamber (up to 90°C);
  • Self-leveling;
  • Fast printing speeds;
  • Triple Z-axes;
  • Built-in drying system for filament;
  • Power loss recovery;
  • Optional build plates (from hardened glass to carbon fiber);
  • Volcano style extruders;
  • Built-in nozzle wiping plates;
  • Optional fume extraction and filters.
